B82721A2401N021 | TDK (EPCOS)

Power line choke, radial, 27 mH, 400 mA, B82721A2401N021

Order No.: 75D4980
EAN: 4099889039658
MPN:
B82721A2401N021
B82721A2401N21
Series: B82721A

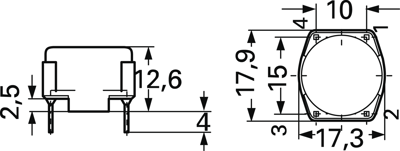

B82721A2401N021 TDK (EPCOS) Fixed Inductors Image 1

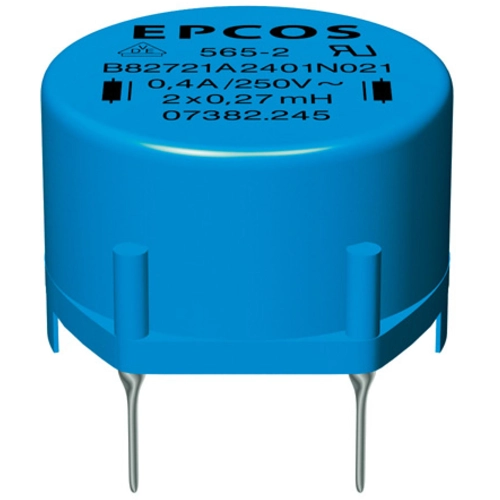

B82721A2401N021 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1,128.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
600 pcs.
1.8802 €

Power line chokes, type TDK/Epcos B82721A./B82721K.

Current-compensated ring core double choke for line applications. Ferrite core, polyurethane potting, flame retardant cup and mold (UL 94 V-0), connecting pins according to grid

Technical specifications
Filter Property Value
Length 17.9 mm
DC current 400 mA
Height 12.6 mm
Saturation current 400 mA
Inductance 27 mH
Measuring frequency 10 kHz
Width 17.3 mm
Design radial
DC resistance 1.7 Ω
Version power line choke
Tolerance ±30 %
Logistics
Property Value
Customs tariff number 85045000
Original Packaging Carton with 600 pieces
Country of origin HU
Compliance
Property Value
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
