B82721A2401N020 | TDK (EPCOS)

Power line choke, radial, 39 mH, 400 mA, B82721A2401N020

Order No.: 75D4984
EAN: 4099889039672
MPN:
B82721A2401N020
B82721A2401N20
Series: B82721A
B82721A2401N020 TDK (EPCOS) Fixed Inductors Image 1
B82721A2401N020 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
3.1059 € *
Available: 989 pcs.
Leadtime: On Request **
Total Price:
3.11 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1059 €
10 pcs.
2.5823 €
100 pcs.
2.2253 €
250 pcs.
2.0111 €
1000 pcs.
1.8445 €
*incl. VAT plus shipping costs
**Subject to prior sale

Power line chokes, type TDK/Epcos B82721A./B82721K.

Current-compensated ring core double choke for line applications. Ferrite core, polyurethane potting, flame retardant cup and mold (UL 94 V-0), connecting pins according to grid

Technical specifications
DC current 400 mA
Saturation current 400 mA

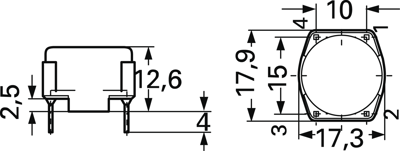

Width 17.3 mm
Height 12.6 mm
Length 17.9 mm
DC resistance 2 Ω
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance ±30 %
Inductance 39 mH
Logistics
Country of origin HU
Customs tariff number 85045000
Original Packaging Carton with 600 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
