B82721A2202N001 | TDK (EPCOS)
Power line choke, radial, 1 mH, 2 A, B82721A2202N001
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 8 Weeks
Power line chokes, type TDK/Epcos B82721A./B82721K.
Current-compensated ring core double choke for line applications. Ferrite core, polyurethane potting, flame retardant cup and mold (UL 94 V-0), connecting pins according to grid

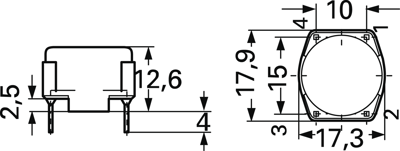

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 17.9 mm | |
| DC current | 2 A | |
| Height | 12.6 mm | |
| Saturation current | 2 A | |
| Inductance | 1 mH | |
| Measuring frequency | 100 kHz | |
| Width | 17.3 mm | |
| Design | radial | |
| DC resistance | 80 mΩ | |
| Version | power line choke | |
| Tolerance | ±30 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 600 pieces |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
