B82721A2152N001 | TDK (EPCOS)

Power line choke, radial, 3.3 mH, 1.5 A, B82721A2152N001

Order No.: 75D4964
EAN: 4099889039580
MPN:
B82721A2152N001
B82721A2152N1
Series: B82721A
B82721A2152N001 TDK (EPCOS) Fixed Inductors Image 1
B82721A2152N001 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
3.1059 € *
Available: 624 pcs.
Total Price:
3.11 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1059 €
10 pcs.
2.5823 €
100 pcs.
2.2253 €
250 pcs.
2.0111 €
1000 pcs.
1.8445 €
*incl. VAT plus shipping costs
Subject to prior sale

Power line chokes, type TDK/Epcos B82721A./B82721K.

Current-compensated ring core double choke for line applications. Ferrite core, polyurethane potting, flame retardant cup and mold (UL 94 V-0), connecting pins according to grid

Technical specifications
Filter Property Value
Inductance 3.3 mH
DC current 1.5 A
DC resistance 180 mΩ
Design radial
Version power line choke

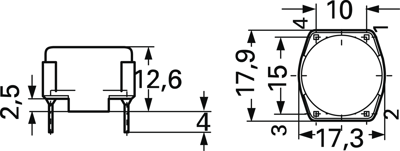

Width 17.3 mm
Height 12.6 mm
Saturation current 1.5 A
Tolerance ±30 %
Measuring frequency 10 kHz
Length 17.9 mm
Logistics
Property Value
Country of origin HU
Original Packaging Carton with 600 pieces
Customs tariff number 85045000
Compliance
Property Value
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
