B82720S2301N040 | TDK (EPCOS)

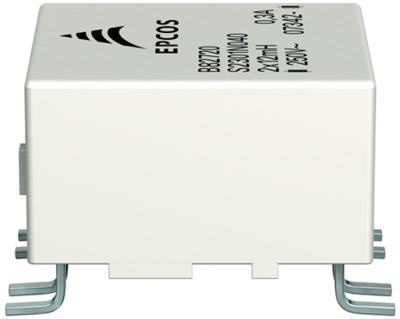

Power line choke, SMD, 12 mH, 300 mA, B82720S2301N040
Order No.: 74D7556
EAN: 4099889024524
MPN:
B82720S2301N040
B82720S2301N40
Unit Price (€ / pc.)
1.9754 € *
Standard delivery time from the manufacturer is: 16 Weeks
Power line choke, B82720S2301N040, EPCOS
Features
- Approx. 0.7 % stray inductance for differential-mode interference suppression
- Suitable for reflow soldering
- Design complies with EN 60938-2
- RoHS-compatible
Applications
- Suppression of common-mode interferences
- Compact switch-mode power supplies
- Compact electronic ballasts in lamps
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power line choke | |
| Inductance | 12 mH | |
| DC current | 300 mA | |
| Tolerance | -30/+50 % | |
| DC resistance | 1.1 Ω | |
| Measuring frequency | 10 kHz | |
| Design | SMD | |
| Length | 14.9 mm | |
| Width | 13.3 mm | |
| Height | 10.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 250 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
