B82720S2202N040 | TDK (EPCOS)

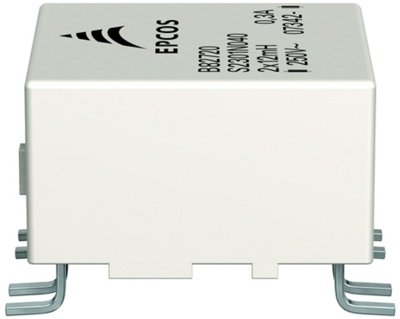

Power line choke, SMD, 1.1 mH, 2 A, B82720S2202N040
Unit Price (€ / pc.)
1.7374 € *
Available: 804 pcs.
Total Price:
5.21 € *
Price list
Quantity
Price per unit*
3 pcs.
1.7374 €
15 pcs.
1.5827 €
75 pcs.
1.4518 €
400 pcs.
1.3923 €
800 pcs.
1.3328 €
*incl. VAT plus shipping costs
Subject to prior sale
Power line chokes, type TDK/Epcos B82720A.
Current-compensated ring core double choke for line applications
With SMD connections, type B82720S.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 2 A | |
| DC resistance | 65 mΩ | |
| Saturation current | 2 A | |
| Measuring frequency | 10 kHz | |
| Tolerance | -30/+50 % | |
| Length | 14.9 mm | |
| Height | 10.7 mm | |
| Width | 13.3 mm | |
| Inductance | 1.1 mH | |
| Design | SMD | |
| Version | power line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 250 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
