B82720S2102N040 | TDK (EPCOS)

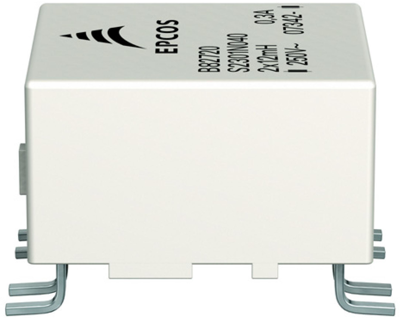

Power line choke, SMD, 3 mH, 1 A, B82720S2102N040
Order No.: 73D9213
EAN: 4099889007428
MPN:
B82720S2102N040
B82720S2102N40
Unit Price (€ / pc.)
1.5470 € *
Standard delivery time from the manufacturer is: 28 Weeks
Power line chokes, type TDK/Epcos B82720A.
Current-compensated ring core double choke for line applications
With SMD connections, type B82720S.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 3 mH | |
| Length | 14.9 mm | |
| Design | SMD | |
| DC resistance | 220 mΩ | |
| Tolerance | -30/+50 % | |
| DC current | 1 A | |
| Width | 13.3 mm | |
| Measuring frequency | 10 kHz | |
| Height | 10.7 mm | |
| Version | power line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 250 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
