B82720H0015A035 | TDK (EPCOS)

Signal line choke, radial, 68 mH, 200 mA, B82720H0015A035

Order No.: 74D7552
EAN: 4099889024487
MPN:
B82720H0015A035
B82720H15A35
TDK (EPCOS)

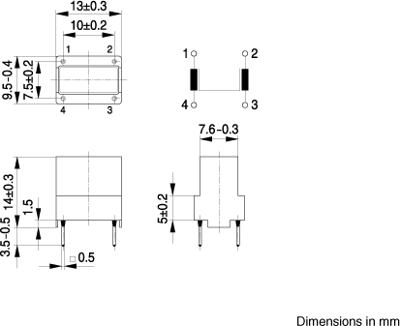

B82720H0015A035 TDK (EPCOS) Fixed Inductors Image 1

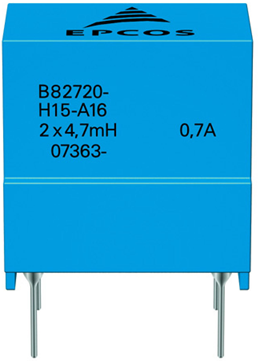

B82720H0015A035 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version signal line choke
Inductance 68 mH
DC current 200 mA
Tolerance -30/+50 %
DC resistance 3.3 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.9754 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,777.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
900 pcs.
1.9754 €
Description
Technical specifications
Download
Logistics
Compliance

Signal line choke, B82720H0015A035, EPCOS

Features

  • Suitable for automatic insertion
  • Suitable for wave soldering
  • RoHS-compatible

Applications

  • Telecom switching systems
  • Terminal systems
  • Measuring and control lines
Technical specifications
DC current 200 mA
Width 9.5 mm
Height 15.5 mm
Length 13 mm
DC resistance 3.3 Ω
Measuring frequency 10 kHz
Version signal line choke
Design radial
Tolerance -30/+50 %
Inductance 68 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Tray with 150 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
