B82720H0015A030 | TDK (EPCOS)

Signal line choke, radial, 47 mH, 300 mA, B82720H0015A030

Order No.: 74D7551
EAN: 4099889024470
MPN:
B82720H0015A030
B82720H15A30
TDK (EPCOS)

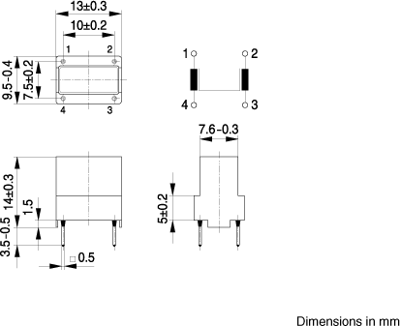

B82720H0015A030 TDK (EPCOS) Fixed Inductors Image 1

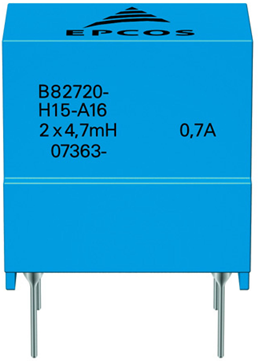

B82720H0015A030 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version signal line choke
Inductance 47 mH
DC current 300 mA
Tolerance -30/+50 %
DC resistance 2.7 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.3562 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,060.29 € *
*incl. VAT plus shipping costs
**Subject to prior sale
450 pcs.
2.3562 €
Description
Technical specifications
Download
Logistics
Compliance

Signal line choke, B82720H0015A030, EPCOS

Features

  • Suitable for automatic insertion
  • Suitable for wave soldering
  • RoHS-compatible

Applications

  • Telecom switching systems
  • Terminal systems
  • Measuring and control lines
Technical specifications
DC current 300 mA
Width 9.5 mm
Height 14 mm
Length 13 mm
DC resistance 2.7 Ω
Measuring frequency 10 kHz
Version signal line choke
Design radial
Tolerance -30/+50 %
Inductance 47 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Tray with 150 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
