B82720H0015A028 | TDK (EPCOS)

Signal line choke, radial, 28 mH, 400 mA, B82720H0015A028

Order No.: 74D7550
EAN: 4099889024463
MPN:
B82720H0015A028
B82720H15A28
TDK (EPCOS)

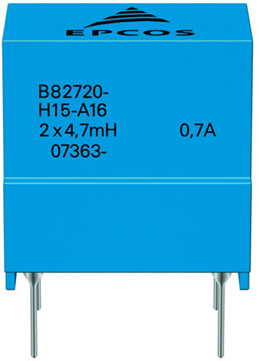

B82720H0015A028 TDK (EPCOS) Fixed Inductors Image 1
B82720H0015A028 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version signal line choke
Inductance 28 mH
DC current 400 mA
Tolerance -30/+50 %
DC resistance 1.2 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.9754 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
1,777.86 € *
*incl. VAT plus shipping costs
Subject to prior sale
900 pcs.
1.9754 €
Description
Technical specifications
Download
Logistics
Compliance

Signal line choke, B82720H0015A028, EPCOS

Features

  • Suitable for automatic insertion
  • Suitable for wave soldering
  • RoHS-compatible

Applications

  • Telecom switching systems
  • Terminal systems
  • Measuring and control lines
Technical specifications
DC current 400 mA
Width 9.5 mm
Height 14 mm
Length 13 mm
DC resistance 1.2 Ω
Measuring frequency 10 kHz
Version signal line choke
Design radial
Tolerance -30/+50 %
Inductance 28 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Tray with 150 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
