B82720H0015A025 | TDK (EPCOS)

Signal line choke, radial, 10 mH, 600 mA, B82720H0015A025

Order No.: 74D7549
EAN: 4099889024456
MPN:
B82720H0015A025
B82720H15A25
TDK (EPCOS)

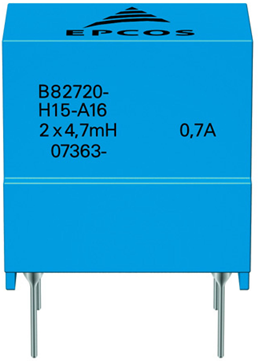

B82720H0015A025 TDK (EPCOS) Fixed Inductors Image 1

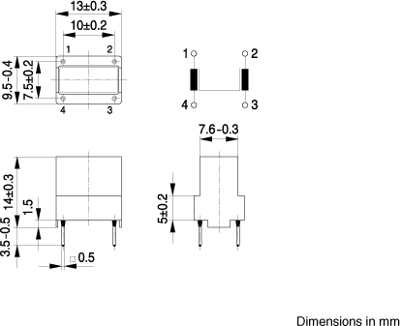

B82720H0015A025 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version signal line choke
Inductance 10 mH
DC current 600 mA
Tolerance -30/+50 %
DC resistance 700 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.9754 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,777.86 € *
*incl. VAT plus shipping costs
**Subject to prior sale
900 pcs.
1.9754 €
Description
Technical specifications
Download
Logistics
Compliance

Signal line choke, B82720H0015A025, EPCOS

Features

  • Suitable for automatic insertion
  • Suitable for wave soldering
  • RoHS-compatible

Applications

  • Telecom switching systems
  • Terminal systems
  • Measuring and control lines
Technical specifications
DC current 600 mA
Width 9.5 mm
Height 14 mm
Length 13 mm
DC resistance 700 mΩ
Measuring frequency 10 kHz
Version signal line choke
Design radial
Tolerance -30/+50 %
Inductance 10 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Tray with 150 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
