B82720H0015A016 | TDK (EPCOS)

Signal line choke, radial, 4.7 mH, 700 mA, B82720H0015A016

Order No.: 74D7548
EAN: 4099889024449
MPN:
B82720H0015A016
B82720H15A16
TDK (EPCOS)

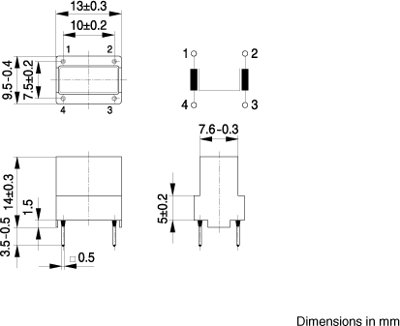

B82720H0015A016 TDK (EPCOS) Fixed Inductors Image 1

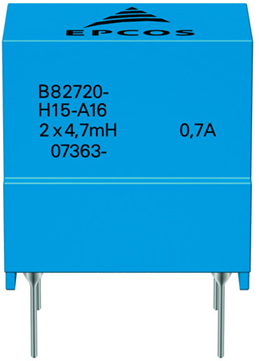

B82720H0015A016 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version signal line choke
Inductance 4.7 mH
DC current 700 mA
Tolerance -30/+50 %
DC resistance 500 mΩ
Download Datasheet Technical specifications
Unit Price (€ / pc.)
2.3562 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1,060.29 € *
*incl. VAT plus shipping costs
**Subject to prior sale
450 pcs.
2.3562 €
Description
Technical specifications
Download
Logistics
Compliance

Signal line choke, B82720H0015A016, EPCOS

Features

  • Suitable for automatic insertion
  • Suitable for wave soldering
  • RoHS-compatible

Applications

  • Telecom switching systems
  • Terminal systems
  • Measuring and control lines
Technical specifications
DC current 700 mA
Width 9.5 mm
Height 14 mm
Length 13 mm
DC resistance 500 mΩ
Measuring frequency 10 kHz
Version signal line choke
Design radial
Tolerance -30/+50 %
Inductance 4.7 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Tray with 450 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
