B82720A2601N040 | TDK (EPCOS)

Power line choke, radial, 4.4 mH, 600 mA, B82720A2601N040

Order No.: 73D9226
EAN: 4099889007466
MPN:
B82720A2601N040
B82720A2601N40
TDK (EPCOS)

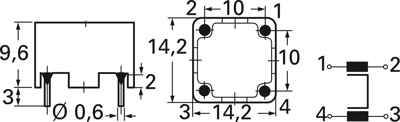

B82720A2601N040 TDK (EPCOS) Fixed Inductors Image 1

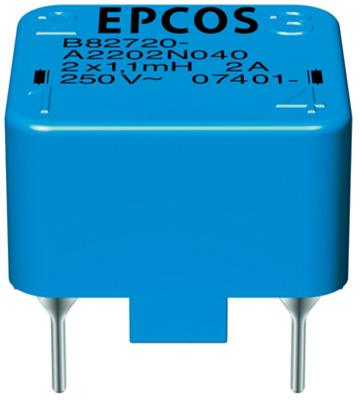

B82720A2601N040 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Print
Key Specification:
Version power line choke
Inductance 4.4 mH
DC current 600 mA
Tolerance -30/+50 %
DC resistance 0.4 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.9754 € *
Standard delivery time from the manufacturer is: 28 Weeks
Total Price:
1,580.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
800 pcs.
1.9754 €
Description
Technical specifications
Download
Logistics
Compliance

Power line choke, B82720A2601N040, EPCOS

Features

  • High resonance frequency due to special winding technique
  • Approx. 0.7 % stray inductance for symmetrical interference suppression
  • Suitable for wave soldering
  • Design complies with EN 60938-2
  • RoHS-compatible

Applications

  • Suppression of common-mode interferences
  • Compact electronic ballasts in lamps
  • Compact switch-mode power applications
Technical specifications
DC current 600 mA
Saturation current 600 mA
Width 14.2 mm
Height 9.6 mm
Length 14.2 mm
DC resistance 0.4 Ω
Measuring frequency 10 kHz
Version power line choke
Design radial
Tolerance -30/+50 %
Inductance 4.4 mH
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85045000
Original Packaging Carton with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
