B82720A2301N040 | TDK (EPCOS)

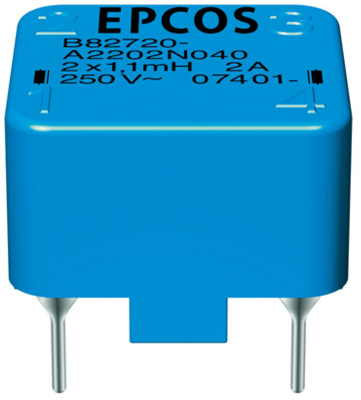

Power line choke, radial, 12 mH, 300 mA, B82720A2301N040
Unit Price (€ / pc.)
3.2844 € *
Standard delivery time from the manufacturer is: 28 Weeks
Total Price:
3.28 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2844 €
10 pcs.
2.7251 €
100 pcs.
2.3443 €
250 pcs.
2.1301 €
1000 pcs.
1.9516 €
*incl. VAT plus shipping costs
Subject to prior sale
Power line choke, B82720A2301N040, EPCOS
Features
- High resonance frequency due to special winding technique
- Approx. 0.7 % stray inductance for symmetrical interference suppression
- Suitable for wave soldering
- Design complies with EN 60938-2
- RoHS-compatible
Applications
- Suppression of common-mode interferences
- Compact electronic ballasts in lamps
- Compact switch-mode power applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Saturation current | 300 mA | |
| Tolerance | -30/+50 % | |
| Measuring frequency | 10 kHz | |
| DC resistance | 1.1 Ω | |
| Version | power line choke | |

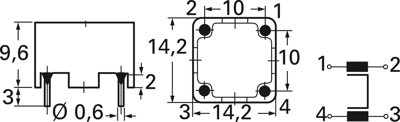

| Design | radial | |
| Length | 14.2 mm | |
| Inductance | 12 mH | |
| Height | 9.6 mm | |
| Width | 14.2 mm | |
| DC current | 300 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 100 pieces |
| Customs tariff number | 85045000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
