B82720A2102N040 | TDK (EPCOS)
Power line choke, radial, 3 mH, 1 A, B82720A2102N040
Unit Price (€ / pc.)
2.8679 € *
Available: 618 pcs.
Total Price:
2.87 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8679 €
10 pcs.
2.5466 €
100 pcs.
2.3086 €
250 pcs.
2.0944 €
1000 pcs.
1.9159 €
*incl. VAT plus shipping costs
Subject to prior sale
Power line choke, B82720A2102N040, EPCOS
Features
- High resonance frequency due to special winding technique
- Approx. 0.7 % stray inductance for symmetrical interference suppression
- Suitable for wave soldering
- Design complies with EN 60938-2
- RoHS-compatible
Applications
- Suppression of common-mode interferences
- Compact electronic ballasts in lamps
- Compact switch-mode power applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 1 A | |
| DC resistance | 220 mΩ | |
| Saturation current | 1 A | |
| Measuring frequency | 10 kHz | |
| Tolerance | -30/+50 % | |

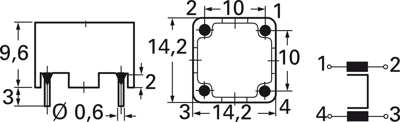

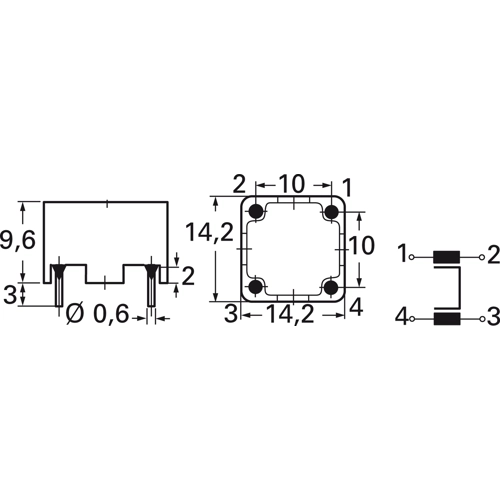

| Length | 14.2 mm | |
| Height | 9.6 mm | |
| Width | 14.2 mm | |
| Inductance | 3 mH | |
| Design | radial | |
| Version | power line choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Carton with 100 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| RoHS conform | Yes |
| SVHC free | No |
