B82623G0001A005 | TDK (EPCOS)

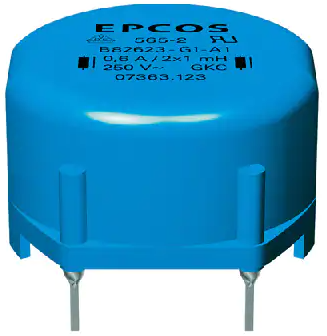

Power line choke, SMD, 1 mH, 500 mA, B82623G0001A005
Order No.: 74D7534
EAN: 4099889024333
MPN:
B82623G0001A005
B82623G1A5
Unit Price (€ / pc.)
2.3205 € *
Standard delivery time from the manufacturer is: 8 Weeks
Power line choke, B82623G0001A005, EPCOS
Features
- Effective suppression of differential-mode interferences at higher frequencies
- Suitable for wave soldering
- Design complies with EN 60938-2
- RoHS-compatible
Applications
- Suppression of differential-mode interferences
- Compact switch-mode applications
- Reduction of harmonics and PFC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 1 mH | |
| DC current | 500 mA | |
| Width | 27 mm | |
| Length | 28 mm | |
| Design | SMD | |
| DC resistance | 1.1 Ω | |
| Version | power line choke | |
| Height | 16.8 mm | |
| Tolerance | ±20 % | |
| Measuring frequency | 100 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 400 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
