B82615B2502M001 | TDK (EPCOS)

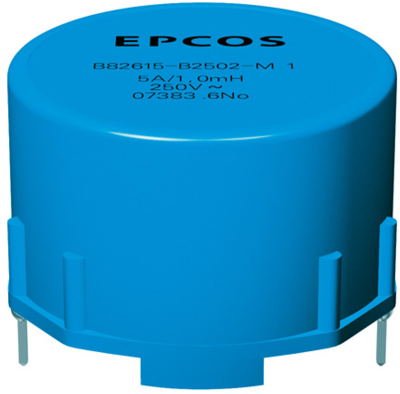

Power line choke, radial, 1 mH, 5 A, B82615B2502M001
Order No.: 74D7531
EAN: 4099889024302
MPN:
B82615B2502M001
B82615B2502M1
Unit Price (€ / pc.)
6.7592 € *
Standard delivery time from the manufacturer is: 8 Weeks
Power line choke, B82615B2502M001, EPCOS
Features
- High suppression of differential-mode interferences at low frequencies
- Suitable for wave soldering
- Design complies with EN 60938-2
- High thermal stability due to complete potting
- RoHS-compatible
Applications
- Suppression of differential-mode interferences
- Filter circuits in switch-mode applications
- Power factor correction (PFC)
- Reduction of harmonics in consumer goods
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±20 % | |
| Width | 42.4 mm | |
| Version | power line choke | |
| DC current | 5 A | |
| Length | 44 mm | |
| Height | 30 mm | |
| DC resistance | 150 mΩ | |
| Design | radial | |
| Measuring frequency | 100 kHz | |
| Inductance | 1 mH |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 80 pieces |
| Customs tariff number | 85045000 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
