B82614R2202A030 | TDK (EPCOS)

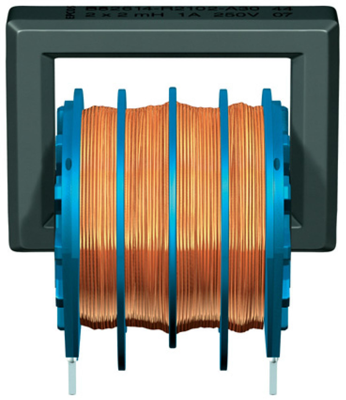

Power line choke, radial, 1 mH, 2 A, B82614R2202A030
Order No.: 74D7523
EAN: 4099889024227
MPN:
B82614R2202A030
B82614R2202A30
Unit Price (€ / pc.)
2.5942 € *
Standard delivery time from the manufacturer is: 8 Weeks
Power line choke, B82614R2202A030, EPCOS
Features
- High resonance frequency due to 4-section winding
- Low saturation effects due to gapped core
- Design complies with EN 60938-2
- Suitable for wave soldering
- RoHS-compatible
Applications
- Switch-mode power supplies with current pump
- Output filter in switch-mode applications
- Reduction of harmonics and PFC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±30 % | |
| Width | 21 mm | |
| Version | power line choke | |
| DC current | 2 A | |
| Length | 32.5 mm | |
| Height | 31 mm | |
| DC resistance | 430 mΩ | |
| Design | radial | |
| Measuring frequency | 100 kHz | |
| Inductance | 1 mH |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 400 pieces |
| Customs tariff number | 85045000 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
