B82559A9203A025 | TDK (EPCOS)

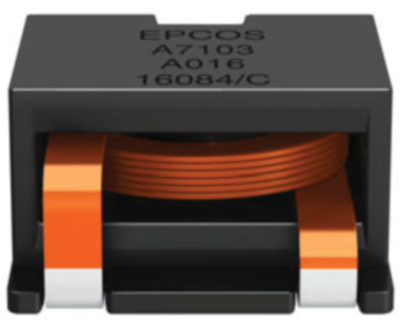

Power choke, SMD, 20 µH, 15 A, B82559A9203A025
Order No.: 74D7518
EAN: 4099889024197
MPN:
B82559A9203A025
B82559A9203A25
Unit Price (€ / pc.)
6.8782 € *
Standard delivery time from the manufacturer is: 24 Weeks
Power inductor, B82559A9203A025, EPCOS
Features
- Extremely low DC resistance
- Suitable for pick and place processes
- Very low profile and extremely small footprint
- High rated current
- RoHS-compatible
Applications
- VRM modules
- POL converters
- DC/DC converters
- Solar converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±7 % | |
| Width | 23.5 mm | |
| Saturation current | 14 A | |
| Version | power choke | |
| DC current | 15 A | |
| Length | 25.3 mm | |
| Height | 13 mm | |
| DC resistance | 3.25 mΩ | |
| Design | SMD | |
| Measuring frequency | 10 kHz | |
| Inductance | 20 µH |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Tray with 240 pieces |
| Customs tariff number | 85045000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
