B82559A4432A025 | TDK (EPCOS)

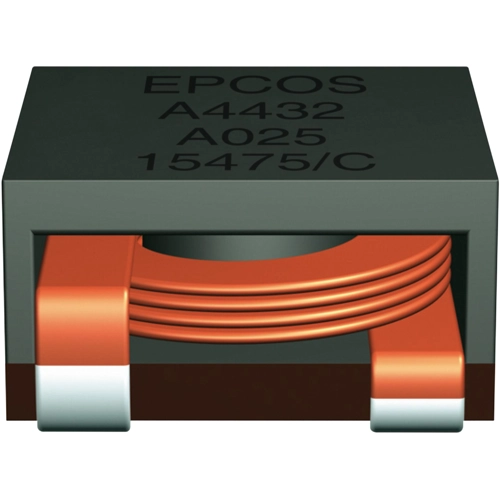

Power choke, SMD, 4.35 µH, 30 A, B82559A4432A025
Unit Price (€ / pc.)
5.6049 € *
Available: 125 pcs.
Total Price:
5.60 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6049 €
10 pcs.
4.9266 €
280 pcs.
4.3316 €
560 pcs.
4.1531 €
1120 pcs.
3.9865 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD power inductor, type TDK/Epcos B82559.
For very high rated currents, ultra-low DC resistance. Shielded case
With helical winding, type B82559.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 30 A | |
| DC resistance | 1.3 mΩ | |
| Saturation current | 30 A | |
| Measuring frequency | 10 kHz | |
| Tolerance | ±7 % | |
| Length | 25.3 mm | |
| Height | 10.75 mm | |
| Width | 23.5 mm | |
| Inductance | 4.35 µH | |
| Design | SMD | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Tray with 280 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
