B82559A0501A013 | TDK (EPCOS)

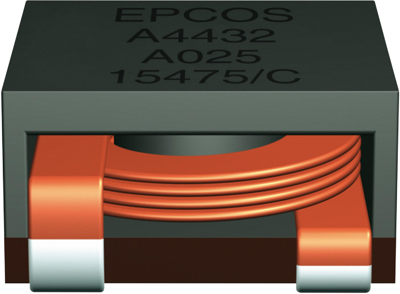

Power choke, SMD, 500 nH, 30 A, B82559A0501A013
Order No.: 73D9160
EAN: 4099889007176
MPN:
B82559A0501A013
B82559A501A13
Unit Price (€ / pc.)
2.3205 € *
Standard delivery time from the manufacturer is: 24 Weeks
Power inductor, B82559A0501A013, EPCOS
Features
- Extremely low DC resistance
- Suitable for pick and place processes
- Very low profile and smallest possible footprint
- Very high rated current
Applications
- VRM modules
- POL converters
- DC/DC converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 500 nH | |
| Length | 13 mm | |
| Saturation current | 30 A | |
| Design | SMD | |
| DC resistance | 780 mΩ | |
| Tolerance | ±10 % | |
| DC current | 30 A | |
| Width | 10.7 mm | |
| Measuring frequency | 10 kHz | |
| Height | 5.95 mm | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 750 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
