B82559A0242A013 | TDK (EPCOS)
Power choke, SMD, 2.4 µH, 16.5 A, B82559A0242A013
Unit Price (€ / pc.)
3.2130 € *
Available: 497 pcs.
Total Price:
3.21 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2130 €
10 pcs.
2.8203 €
100 pcs.
2.4752 €
500 pcs.
2.2848 €
1000 pcs.
2.1896 €
*incl. VAT plus shipping costs
Subject to prior sale

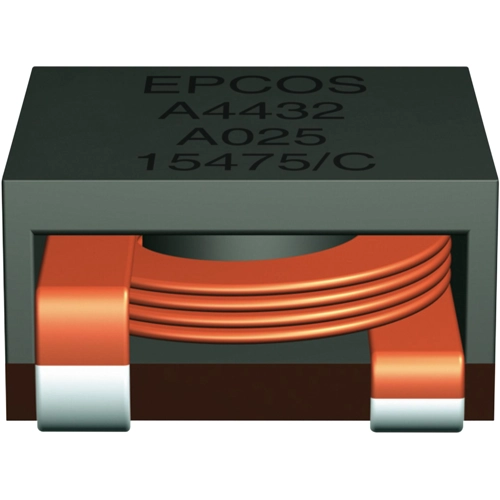

SMD power inductor, type TDK/Epcos B82559.
For very high rated currents, ultra-low DC resistance. Shielded case
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 16.5 A | |
| DC resistance | 2.76 mΩ | |
| Saturation current | 16.5 A | |
| Measuring frequency | 10 kHz | |
| Tolerance | ±10 % | |
| Length | 13 mm | |
| Height | 5.95 mm | |
| Width | 10.7 mm | |
| Inductance | 2.4 µH | |
| Design | SMD | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
