B82498F3471J000 | TDK (EPCOS)

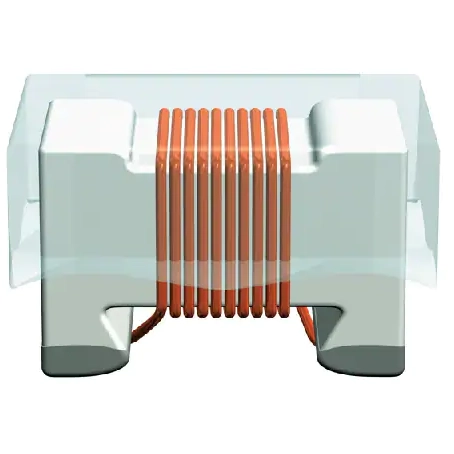

RF choke, SMD 0805, 470 nH, 190 mA, B82498F3471J000
Order No.: 76D9472
EAN: 4099889045802
MPN:
B82498F3471J000
B82498F3471J
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 8 Weeks
RF inductor, B82498F3471J000, EPCOS
Features
- High resonance frequency
- Narrow inductance tolerance
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Antenna amplifiers
- Multimedia
- Wireless communication systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 470 nH | |
| DC current | 190 mA | |
| Width | 1.7 mm | |
| Quality Q | Q 30 | |
| Length | 2.3 mm | |
| Design | SMD 0805 | |
| DC resistance | 1.9 Ω | |
| Version | RF choke | |
| Height | 1.4 mm | |
| Tolerance | ±5 % | |
| Measuring frequency | 50 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
