B82498F3279K001 | TDK (EPCOS)

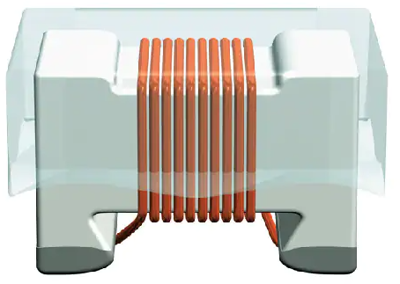

RF choke, SMD 0805, 2.7 nH, 1 A, B82498F3279K001
Order No.: 74D7459
EAN: 4099889023862
MPN:
B82498F3279K001
B82498F3279K1
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 8 Weeks
RF inductor, B82498F3279K001, EPCOS
Features
- Temperature range up to +125 °C
- High resonance frequency
- Suitable for lead-free reflow soldering
- Narrow inductance tolerance
- RoHS-compatible
Applications
- Antenna amplifiers
- Multimedia
- Wireless communication systems
- Automotive electronics
- GPS (Global Positioning System)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 1 A | |
| Tolerance | ±10 % | |
| Design | SMD 0805 | |
| Width | 1.7 mm | |
| Quality Q | Q 50 | |
| Height | 1.4 mm | |
| Inductance | 2.7 nH | |
| Version | RF choke | |
| Length | 2.3 mm | |
| DC resistance | 30 mΩ | |
| Measuring frequency | 250 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | HU |
| Original Packaging | Reel with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
