B82498B3680J000 | TDK (EPCOS)

Choke, SMD 0805, 68 nH, 410 mA, B82498B3680J000

Order No.: 76D9528
EAN: 4099889045895
MPN:
B82498B3680J000
B82498B3680J
Series: B82498B
B82498B3680J000 TDK (EPCOS) Fixed Inductors Image 1
B82498B3680J000 TDK (EPCOS) Fixed Inductors Image 2
Image may differ

Not suitable for new designs

Unit Price (€ / pc.)
0.8568 € *
Available: 415 pcs.
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.5355 €
50 pcs.
0.4760 €
250 pcs.
0.4284 €
1000 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD choke, B82498B3680J000, EPCOS

Features

  • High Q factor
  • High resonance frequency
  • Suitable for lead-free reflow soldering
  • Close inductance tolerance

Applications

  • Antenna amplifiers
  • Car access systems
  • TPMS (Tire Pressure Monitoring System)
  • GPS (Global Positioning System)
  • Wireless communication systems
Technical specifications
Filter Property Value
Inductance 68 nH
DC current 410 mA
DC resistance 0.19 Ω
Design SMD 0805
Version SMD choke
Quality Q Q 45

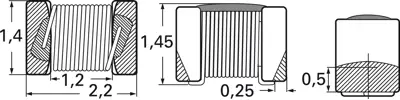

Width 1.45 mm
Height 1.4 mm
Tolerance ±5 %
Measuring frequency 200 MHz
Length 2.2 mm
Logistics
Property Value
Country of origin DE
Original Packaging Bulk with 3,000 pieces
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
