B82498B3471J000 | TDK (EPCOS)

Choke, SMD 0805, 470 nH, 115 mA, B82498B3471J000

Order No.: 76D9538
EAN: 4099889045918
MPN:
B82498B3471J000
B82498B3471J
Series: B82498B
B82498B3471J000 TDK (EPCOS) Fixed Inductors Image 1
B82498B3471J000 TDK (EPCOS) Fixed Inductors Image 2
Image may differ

Not suitable for new designs

Unit Price (€ / pc.)
0.5355 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
3,213.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
6000 pcs.
0.5355 €

SMD choke, B82498B3471J000, EPCOS

Features

  • High Q factor
  • High resonance frequency
  • Suitable for lead-free reflow soldering
  • Close inductance tolerance

Applications

  • Antenna amplifiers
  • Car access systems
  • TPMS (Tire Pressure Monitoring System)
  • GPS (Global Positioning System)
  • Wireless communication systems
Technical specifications
Quality Q Q 35
DC current 115 mA

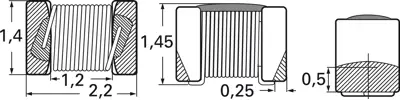

Width 1.45 mm
Height 1.4 mm
Length 2.2 mm
DC resistance 2.4 Ω
Measuring frequency 100 MHz
Version SMD choke
Design SMD 0805
Tolerance ±5 %
Inductance 470 nH
Logistics
Country of origin DE
Customs tariff number 85045000
Original Packaging Bulk with 3,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
