B82498B1472J000 | TDK (EPCOS)

Choke, SMD 0805, 4.7 µH, 90 mA, B82498B1472J000

Order No.: 76D9544
EAN: 4099889045949
MPN:
B82498B1472J000
B82498B1472J
Series: B82498B
B82498B1472J000 TDK (EPCOS) Fixed Inductors Image 1
B82498B1472J000 TDK (EPCOS) Fixed Inductors Image 2
Image may differ

Not suitable for new designs

Unit Price (€ / pc.)
0.7735 € *
Available: 1,078 pcs.
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7735 €
25 pcs.
0.6307 €
100 pcs.
0.5236 €
250 pcs.
0.4522 €
1000 pcs.
0.4046 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD choke, B82498B1472J000, EPCOS

Features

  • High Q factor
  • High resonance frequency
  • Suitable for lead-free reflow soldering
  • Close inductance tolerance

Applications

  • Antenna amplifiers
  • Car access systems
  • TPMS (Tire Pressure Monitoring System)
  • GPS (Global Positioning System)
  • Wireless communication systems
Technical specifications
Filter Property Value
Inductance 4.7 µH
DC current 90 mA
DC resistance 3.8 Ω
Design SMD 0805
Version SMD choke
Quality Q Q 20

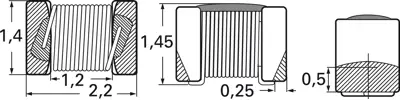

Width 1.45 mm
Height 1.4 mm
Tolerance ±5 %
Measuring frequency 7.96 MHz
Length 2.2 mm
Logistics
Property Value
Country of origin DE
Original Packaging Bulk with 3,000 pieces
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
