B82479A1473M000 | TDK (EPCOS)

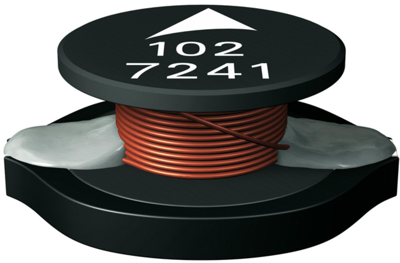

Power choke, SMD, 47 µH, 2.6 A, B82479A1473M000
Unit Price (€ / pc.)
1.1781 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
294.53 € *
Price list
Quantity
Price per unit*
250 pcs.
1.1781 €
500 pcs.
1.1186 €
1000 pcs.
1.0710 €
*incl. VAT plus shipping costs
Subject to prior sale
Power inductor, B82479A1473M000, EPCOS
Features
- Temperature range up to +150 °C
- High rated current
- Suitable for lead-free reflow soldering
- Low DC resistance
Applications
- Filtering of supply voltages, coupling, decoupling
- DC/DC converters
- Industrial electronics
- Telecommunications

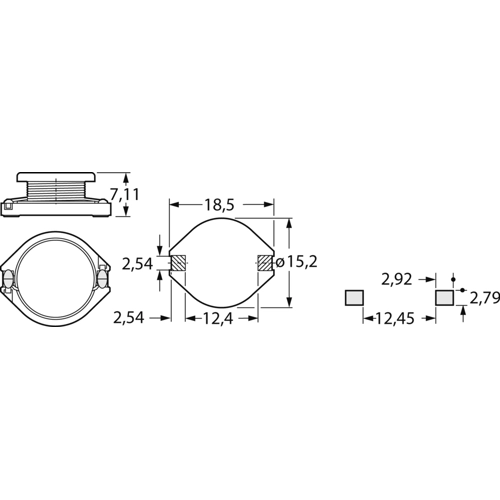

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 47 µH | |
| Length | 18.54 mm | |
| Saturation current | 4.5 A | |
| Design | SMD | |
| DC resistance | 87 mΩ | |
| Tolerance | ±20 % | |
| DC current | 2.6 A | |
| Width | 15.24 mm | |
| Measuring frequency | 100 kHz | |
| Height | 7.11 mm | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 250 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
