B82477D4202M000 | TDK (EPCOS)

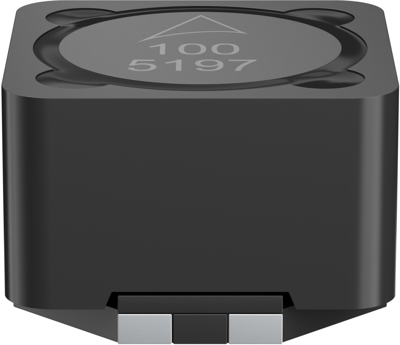

Power choke, SMD, 2 µH, 5.75 A, B82477D4202M000
Order No.: 74D7235
EAN: 4099889022186
MPN:
B82477D4202M000
B82477D4202M
Unit Price (€ / pc.)
1.6303 € *
Standard delivery time from the manufacturer is: 26 Weeks
Power inductor, B82477D4202M000, EPCOS
Features
- Temperature range up to +150 °C
- High rated current
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Common mode choke
- 1:1 transformer
- DC/DC converters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power choke | |
| Inductance | 2 µH | |
| DC current | 5.75 A | |
| Tolerance | ±20 % | |
| DC resistance | 20 mΩ | |
| Saturation current | 15 A | |
| Measuring frequency | 100 kHz | |
| Design | SMD | |
| Length | 12.5 mm | |
| Width | 12.5 mm | |
| Height | 8.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 350 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
