B82476A1333M000 | TDK (EPCOS)

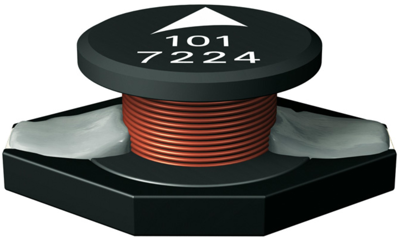

Power choke, SMD, 33 µH, 2.1 A, B82476A1333M000
Order No.: 74D7206
EAN: 4099889021899
MPN:
B82476A1333M000
B82476A1333M
Unit Price (€ / pc.)
1.0948 € *
Standard delivery time from the manufacturer is: 24 Weeks
Power inductor, B82476A1333M000, EPCOS
Features
- Temperature range up to +150 °C
- High rated current
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages
- Coupling and decoupling
- DC/DC converters
- Automotive electronics
Technical specifications
| DC current | 2.1 A | |
| Saturation current | 2 A | |
| Width | 9.4 mm | |
| Height | 5.08 mm | |
| Length | 12.95 mm | |
| DC resistance | 88 mΩ | |
| Measuring frequency | 100 kHz | |
| Version | power choke | |
| Design | SMD | |
| Tolerance | ±20 % | |
| Inductance | 33 µH |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 750 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
