B82475A1334K000 | TDK (EPCOS)

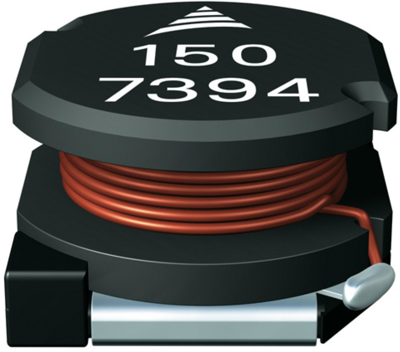

Power choke, SMD, 330 µH, 520 mA, B82475A1334K000
Order No.: 74D7177
EAN: 4099889021608
MPN:
B82475A1334K000
B82475A1334K
Unit Price (€ / pc.)
1.0115 € *
Standard delivery time from the manufacturer is: 24 Weeks
Power inductor, B82475A1334K000, EPCOS
Features
- Temperature range up to +150 °C
- High rated current
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages
- Coupling and decoupling
- DC/DC converters
- Automotive electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 9.4 mm | |
| DC resistance | 1.15 Ω | |
| Tolerance | ±10 % | |
| DC current | 520 mA | |
| Measuring frequency | 100 kHz | |
| Version | power choke | |
| Design | SMD | |
| Height | 5.8 mm | |
| Length | 10.4 mm | |
| Inductance | 330 µH | |
| Saturation current | 550 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 500 pieces |
| Country of origin | CN |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
