B82473M1223K000 | TDK (EPCOS)

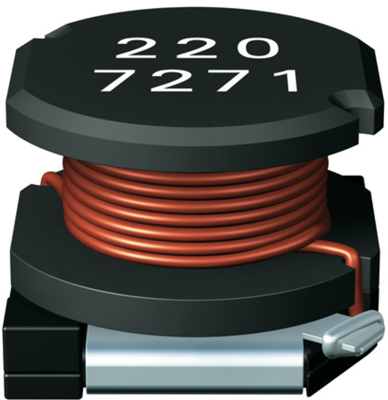

Power choke, SMD, 22 µH, 1.5 A, B82473M1223K000
Order No.: 74D7162
EAN: 4099889021462
MPN:
B82473M1223K000
B82473M1223K
Unit Price (€ / pc.)
0.8806 € *
Standard delivery time from the manufacturer is: 24 Weeks
Power inductor, B82473M1223K000, EPCOS
Features
- Temperature range up to +150 °C
- High rated current
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages
- Coupling and decoupling
- DC/DC converters
- Automotive electronics
Technical specifications
| DC current | 1.5 A | |
| Saturation current | 1.6 A | |
| Width | 7.3 mm | |
| Height | 5.5 mm | |
| Length | 8.3 mm | |
| DC resistance | 110 mΩ | |
| Measuring frequency | 100 kHz | |
| Version | power choke | |
| Design | SMD | |
| Tolerance | ±10 % | |
| Inductance | 22 µH |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
