B82473M1103K000 | TDK (EPCOS)

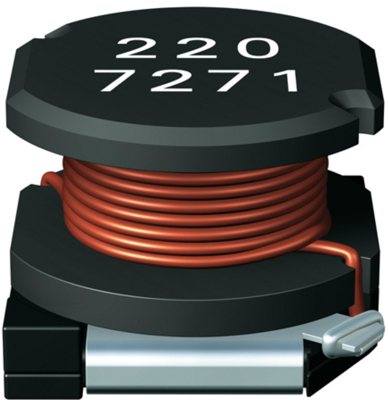

Power choke, SMD, 10 µH, 2.3 A, B82473M1103K000
Order No.: 74D7158
EAN: 4099889021424
MPN:
B82473M1103K000
B82473M1103K
Unit Price (€ / pc.)
0.8806 € *
Standard delivery time from the manufacturer is: 24 Weeks
Power inductor, B82473M1103K000, EPCOS
Features
- Temperature range up to +150 °C
- High rated current
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages
- Coupling and decoupling
- DC/DC converters
- Automotive electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | power choke | |
| Inductance | 10 µH | |
| DC current | 2.3 A | |
| Tolerance | ±10 % | |
| DC resistance | 70 mΩ | |
| Saturation current | 2.5 A | |
| Measuring frequency | 100 kHz | |
| Design | SMD | |
| Length | 8.3 mm | |
| Width | 7.3 mm | |
| Height | 5.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
