B82472G6683M000 | TDK (EPCOS)

Power choke, SMD, 68 µH, 820 mA, B82472G6683M000

Order No.: 73D9142
EAN: 4099889007084
MPN:
B82472G6683M000
B82472G6683M
Series: B82472G6

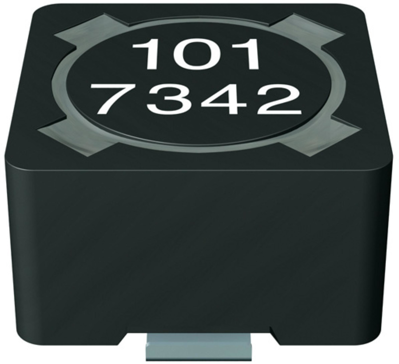

B82472G6683M000 TDK (EPCOS) Fixed Inductors Image 1

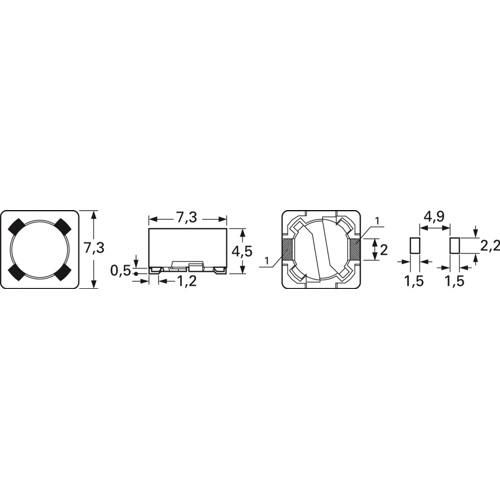

B82472G6683M000 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.714 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
714.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.714 €

Power inductor, B82472G6683M000, EPCOS

Features

  • Temperature range up to +125 °C
  • High rated current
  • Suitable for lead-free reflow soldering
  • RoHS-compatible

Applications

  • Filtering of supply voltages
  • Coupling and decoupling
  • DC/DC converters
  • Consumer electronics
Technical specifications
Filter Property Value
Inductance 68 µH
DC current 820 mA
DC resistance 0.26 Ω
Design SMD
Version power choke
Width 7.3 mm
Height 4.5 mm
Saturation current 680 mA
Tolerance ±20 %
Measuring frequency 100 kHz
Length 7.3 mm
Logistics
Property Value
Country of origin CN
Original Packaging Bulk with 1,000 pieces
Customs tariff number 85045000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
