B82472G6473M000 | TDK (EPCOS)

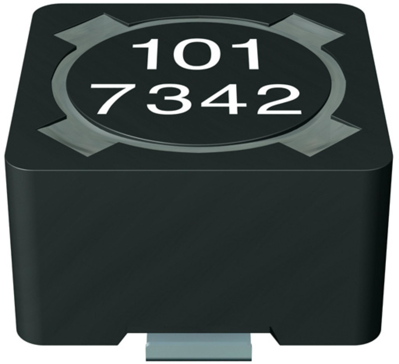

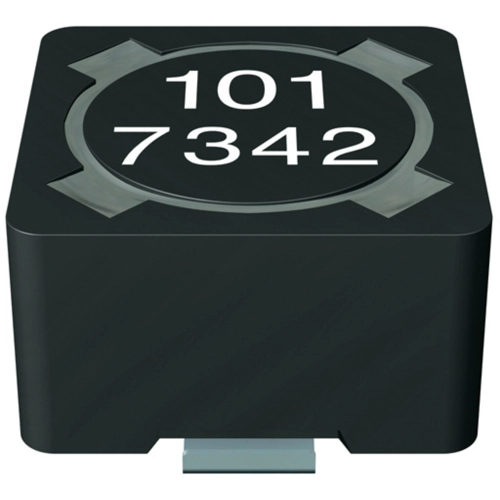

Power choke, SMD, 47 µH, 1 A, B82472G6473M000
Unit Price (€ / pc.)
1.3804 € *
Available: 290 pcs.
Total Price:
13.80 € *
Price list
Quantity
Price per unit*
10 pcs.
1.3804 €
50 pcs.
1.2138 €
250 pcs.
1.0472 €
1000 pcs.
0.9163 €
2000 pcs.
0.8568 €
*incl. VAT plus shipping costs
Subject to prior sale
Power inductor, B82472G6473M000, EPCOS
Features
- Temperature range up to +125 °C
- High rated current
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages
- Coupling and decoupling
- DC/DC converters
- Consumer electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 47 µH | |
| Length | 7.3 mm | |
| Saturation current | 900 mA | |
| Design | SMD | |
| DC resistance | 0.2 Ω | |
| Tolerance | ±20 % | |
| DC current | 1 A | |
| Width | 7.3 mm | |
| Measuring frequency | 100 kHz | |
| Height | 4.5 mm | |
| Version | power choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Original Packaging | Bulk with 1,000 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
