B82472G6103M000 | TDK (EPCOS)

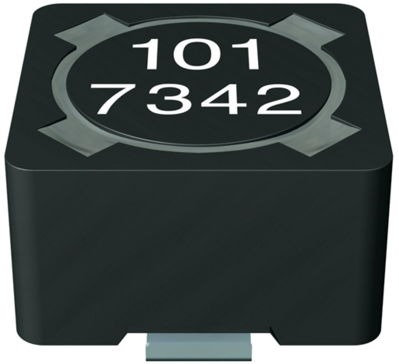

Power choke, SMD, 10 µH, 1.9 A, B82472G6103M000
Order No.: 73D9132
EAN: 4099889007022
MPN:
B82472G6103M000
B82472G6103M
Unit Price (€ / pc.)
0.833 € *
Standard delivery time from the manufacturer is: 24 Weeks
Power inductor, B82472G6103M000, EPCOS
Features
- Temperature range up to +125 °C
- High rated current
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages
- Coupling and decoupling
- DC/DC converters
- Consumer electronics
Technical specifications
| DC current | 1.9 A | |
| Saturation current | 1.4 A | |
| Width | 7.3 mm | |
| Height | 4.5 mm | |
| Length | 7.3 mm | |
| DC resistance | 0.053 Ω | |
| Measuring frequency | 100 kHz | |
| Version | power choke | |
| Design | SMD | |
| Tolerance | ±20 % | |
| Inductance | 10 µH |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
