B82462G4473M000 | TDK (EPCOS)

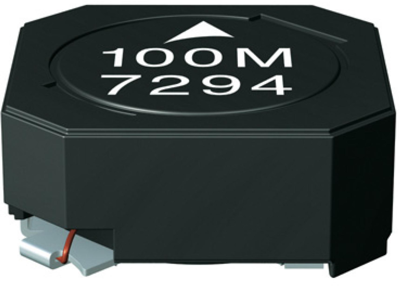

Power choke, SMD, 47 µH, 750 mA, B82462G4473M000
Not suitable for new designs
Unit Price (€ / pc.)
1.8445 € *
Available: 1,945 pcs.
Total Price:
18.45 € *
Price list
Quantity
Price per unit*
10 pcs.
1.8445 €
50 pcs.
1.6184 €
250 pcs.
1.3923 €
2500 pcs.
1.0948 €
5000 pcs.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale
Power inductor, B82462G4473M000, EPCOS
Features
- Temperature range up to +150 °C
- High rated current, low DC resistance
- Suitable for lead-free reflow soldering
- Qualified to AEC-Q200
Applications
- Filtering of supply voltages, coupling, decoupling
- DC/DC converters
- Industrial electronics
- Automotive electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 47 µH | |
| Saturation current | 600 mA | |
| DC current | 750 mA | |
| Width | 6.3 mm | |
| Length | 6.3 mm | |
| Design | SMD | |
| DC resistance | 0.31 Ω | |
| Version | power choke | |
| Height | 3 mm | |
| Tolerance | ±20 % | |
| Measuring frequency | 100 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
