B82451L4814E402 | TDK (EPCOS)

Transponder coil, SMD, 4.81 mH, B82451L4814E402

Order No.: 76D9946
EAN: 4099889046144
MPN:
B82451L4814E402
TDK (EPCOS)

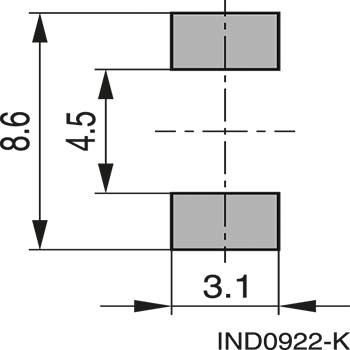

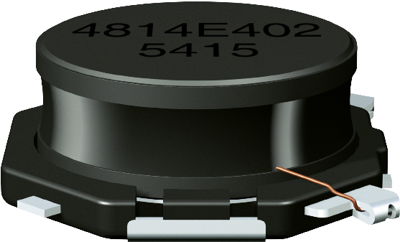

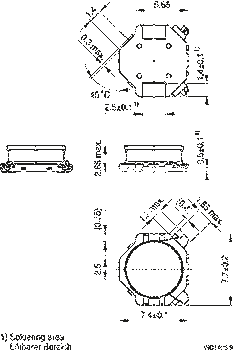

B82451L4814E402 TDK (EPCOS) Fixed Inductors Image 1
B82451L4814E402 TDK (EPCOS) Fixed Inductors Image 2
B82451L4814E402 TDK (EPCOS) Fixed Inductors Image 3
Image may differ
Print
Key Specification:
Version transponder coil
Inductance 4.81 mH
Tolerance ±3 %
DC resistance 48.84 Ω
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.1067 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
1,660.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
1500 pcs.
1.1067 €
Description
Technical specifications
Download
Logistics
Compliance

Transponder coil, B82451L4814E402, EPCOS

Features

  • Ruggedized design to pass drop testing
  • Suitable for lead-free reflow soldering
  • RoHS-compatible
  • AEC-Q200 qualified

Applications

  • Car access system PEPS (Passive Entry, Passive Start)
  • RFID (radio-frequency identification) systems at 125 kHz
Technical specifications
Quality Q Q 58
Width 7.4 mm
Height 2.65 mm
Length 7.7 mm
DC resistance 48.84 Ω
Measuring frequency 125 kHz
Version transponder coil
Design SMD
Tolerance ±3 %
Inductance 4.81 mH
Articles of same specification 0
Logistics
Customs tariff number 85045000
Original Packaging Reel with 1,500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
