B82432T1473K000 | TDK (EPCOS)

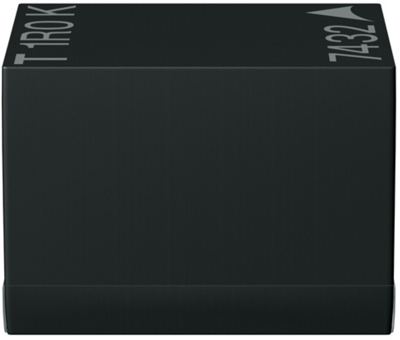

Choke, SMD 1812, 47 µH, 350 mA, B82432T1473K000
Unit Price (€ / pc.)
0.6545 € *
Available: 2,699 pcs.
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6545 €
50 pcs.
0.5712 €
250 pcs.
0.5117 €
1000 pcs.
0.4760 €
2000 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale
Choke, B82432T1473K000, EPCOS
Features
- Temperature range up to +150 °C
- High current handling capability
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- DC/DC converters
- Automotive electronics
- Telecommunications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 350 mA | |
| DC resistance | 1.35 Ω | |
| Quality Q | Q 10 | |
| Measuring frequency | 2.52 MHz | |
| Tolerance | ±10 % | |
| Length | 4.5 mm | |
| Height | 3.2 mm | |
| Width | 3.2 mm | |
| Inductance | 47 µH | |
| Design | SMD 1812 | |
| Version | SMD choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Bulk with 2,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
