B82432T1472K000 | TDK (EPCOS)

Choke, SMD 1812, 4.7 µH, 800 mA, B82432T1472K000

Order No.: 76D9316
EAN: 4099889045543
MPN:
B82432T1472K000
B82432T1472K
Series: SIMID 1812-T

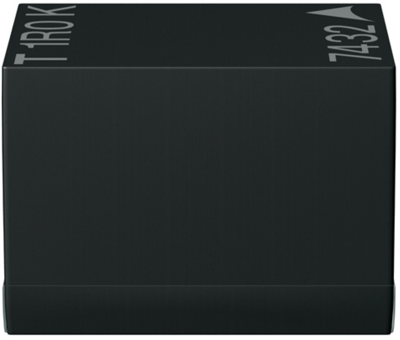

B82432T1472K000 TDK (EPCOS) Fixed Inductors Image 1
B82432T1472K000 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.4284 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,142.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
0.4284 €

Choke, B82432T1472K000, EPCOS

Features

  • Temperature range up to +150 °C
  • High current handling capability
  • Suitable for lead-free reflow soldering
  • RoHS-compatible

Applications

  • Filtering of supply voltages, coupling, decoupling
  • DC/DC converters
  • Automotive electronics
  • Telecommunications
Technical specifications
Quality Q Q 10
DC current 800 mA
Width 3.2 mm
Height 3.2 mm
Length 4.5 mm
DC resistance 220 mΩ
Measuring frequency 7.96 MHz
Version SMD choke
Design SMD 1812
Tolerance ±10 %
Inductance 4.7 µH
Logistics
Country of origin HU
Customs tariff number 85045000
Original Packaging Bulk with 2,500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
