B82432T1333K000 | TDK (EPCOS)

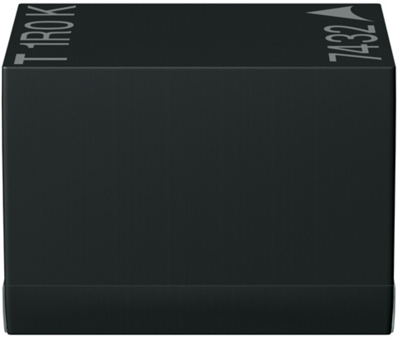

Choke, SMD 1812, 33 µH, 400 mA, B82432T1333K000
Unit Price (€ / pc.)
0.8699 € *
Available: 1,440 pcs.
Total Price:
0.87 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8699 €
10 pcs.
0.6212 €
100 pcs.
0.5307 €
500 pcs.
0.4617 €
1000 pcs.
0.4201 €
*incl. VAT plus shipping costs
Subject to prior sale
Choke, B82432T1333K000, EPCOS
Features
- Temperature range up to +150 °C
- High current handling capability
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- DC/DC converters
- Automotive electronics
- Telecommunications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 400 mA | |
| DC resistance | 1.2 Ω | |
| Tolerance | ±10 % | |
| Length | 4.5 mm | |
| Inductance | 33 µH | |
| Quality Q | Q 10 | |
| Width | 3.2 mm | |
| Height | 3.2 mm | |
| Version | SMD choke | |
| Design | SMD 1812 | |
| Measuring frequency | 2.52 MHz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | DE |
| Original Packaging | Bulk with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
