B82432T1105K000 | TDK (EPCOS)

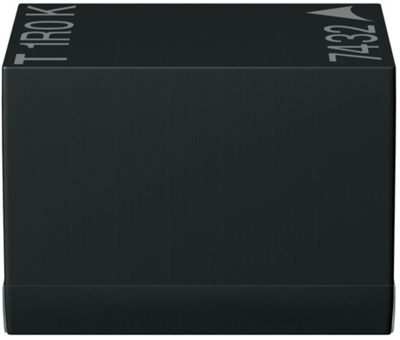

Choke, SMD 1812, 1 mH, 70 mA, B82432T1105K000
Unit Price (€ / pc.)
0.7735 € *
Available: 148 pcs.
Total Price:
7.74 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7735 €
50 pcs.
0.6783 €
*incl. VAT plus shipping costs
Subject to prior sale
Choke, B82432T1105K000, EPCOS
Features
- Temperature range up to +150 °C
- High current handling capability
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- DC/DC converters
- Automotive electronics
- Telecommunications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 1 mH | |
| DC current | 70 mA | |
| Width | 3.2 mm | |
| Quality Q | Q 20 | |
| Length | 4.5 mm | |
| Design | SMD 1812 | |
| DC resistance | 30 Ω | |
| Version | SMD choke | |
| Height | 3.2 mm | |
| Tolerance | ±10 % | |
| Measuring frequency | 252 kHz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 2,500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
