B82432T1103K000 | TDK (EPCOS)

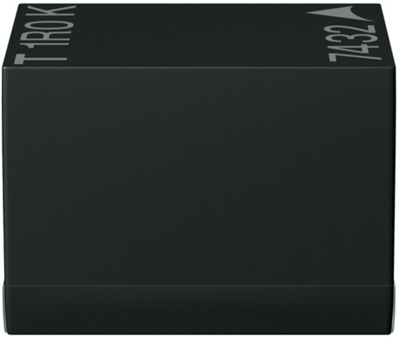

Choke, SMD 1812, 10 µH, 650 mA, B82432T1103K000
Unit Price (€ / pc.)
1.4518 € *
Available: 3,967 pcs.
Leadtime: On Request **
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4518 €
10 pcs.
0.9044 €
50 pcs.
0.7973 €
250 pcs.
0.6902 €
*incl. VAT plus shipping costs
**Subject to prior sale
Choke, B82432T1103K000, EPCOS
Features
- Temperature range up to +150 °C
- High current handling capability
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- DC/DC converters
- Automotive electronics
- Telecommunications
Technical specifications
| Quality Q | Q 10 | |
| DC current | 650 mA | |
| Width | 3.2 mm | |
| Height | 3.2 mm | |
| Length | 4.5 mm | |
| DC resistance | 350 mΩ | |
| Measuring frequency | 2.52 MHz | |
| Version | SMD choke | |
| Design | SMD 1812 | |
| Tolerance | ±10 % | |
| Inductance | 10 µH |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85045000 |
| Original Packaging | Bulk with 2,500 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
