B82432C1472K000 | TDK (EPCOS)

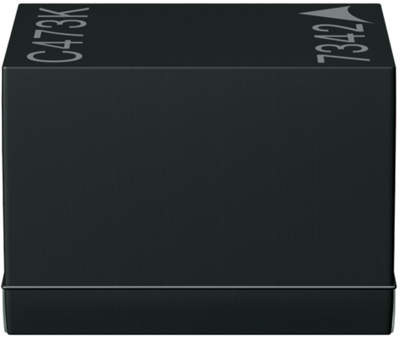

Choke, SMD 1812, 4.7 µH, 390 mA, B82432C1472K000
Unit Price (€ / pc.)
1.5232 € *
Available: 1,796 pcs.
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5232 €
10 pcs.
0.9520 €
50 pcs.
0.8449 €
250 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale
Choke, B82432C1472K000, EPCOS
Features
- High Q factor
- High resonance frequency
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- Antenna systems
- Automotive electronics
- Telecommunications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 390 mA | |
| DC resistance | 0.65 Ω | |
| Quality Q | Q 40 | |
| Measuring frequency | 1 MHz | |
| Tolerance | ±10 % | |
| Length | 4.5 mm | |
| Height | 3.2 mm | |
| Width | 3.2 mm | |
| Inductance | 4.7 µH | |
| Design | SMD 1812 | |
| Version | SMD choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HN |
| Original Packaging | Bulk with 2,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
