B82432C1334K000 | TDK (EPCOS)

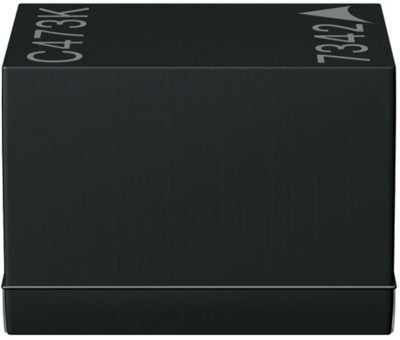

Choke, SMD 1812, 330 µH, 85 mA, B82432C1334K000
Unit Price (€ / pc.)
0.6545 € *
Available: 1,055 pcs.
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6545 €
50 pcs.
0.5831 €
250 pcs.
0.5236 €
1000 pcs.
0.4879 €
2000 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale
Choke, B82432C1334K000, EPCOS
Features
- High Q factor
- High resonance frequency
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- Antenna systems
- Automotive electronics
- Telecommunications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 85 mA | |
| DC resistance | 14.1 Ω | |
| Quality Q | Q 30 | |
| Measuring frequency | 100 kHz | |
| Tolerance | ±10 % | |
| Length | 4.5 mm | |
| Height | 3.2 mm | |
| Width | 3.2 mm | |
| Inductance | 330 µH | |
| Design | SMD 1812 | |
| Version | SMD choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bulk with 2,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
