B82432C1153K000 | TDK (EPCOS)

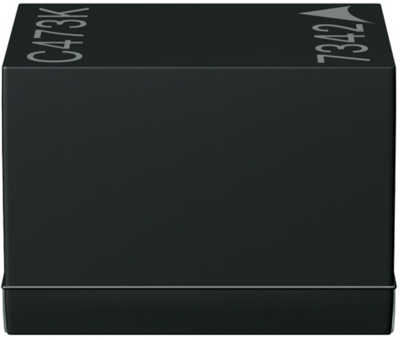

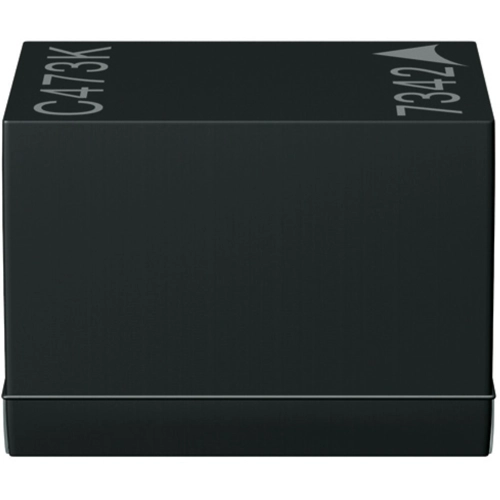

Choke, SMD 1812, 15 µH, 280 mA, B82432C1153K000
Unit Price (€ / pc.)
1.2971 € *
Available: 4,660 pcs.
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2971 €
10 pcs.
0.8092 €
50 pcs.
0.7140 €
250 pcs.
0.6188 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD Power inductor, B82432C1153K000, EPCOS
Features
- Temperature range up to +150 °C
- High Q factor
- Qualified to AEC-Q200
- Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- Antenna systems
- Automotive electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| DC current | 280 mA | |
| DC resistance | 1.25 Ω | |
| Quality Q | Q 30 | |
| Measuring frequency | 100 kHz | |
| Tolerance | ±10 % | |
| Length | 4.5 mm | |
| Height | 3.2 mm | |
| Width | 3.2 mm | |
| Inductance | 15 µH | |
| Design | SMD 1812 | |
| Version | SMD choke |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bulk with 2,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
