B82432C1105K000 | TDK (EPCOS)

Choke, SMD 1812, 1 mH, 55 mA, B82432C1105K000

Order No.: 74D6855
EAN: 4099889019933
MPN:
B82432C1105K000
B82432C1105K
Series: SIMID 1812-C

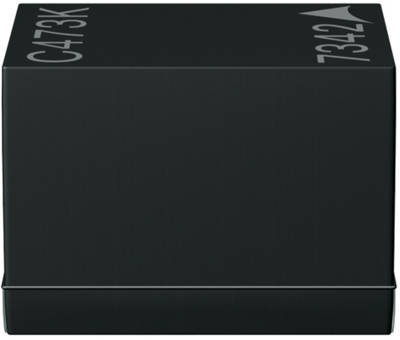

B82432C1105K000 TDK (EPCOS) Fixed Inductors Image 1
B82432C1105K000 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
0.4879 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,439.50 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5000 pcs.
0.4879 €

SMD Power inductor, B82432C1105K000, EPCOS

The B82432C1105K000 is an inductor that blocks all high frequency RF signals and only allows DC signals to pass through it.

Features

  • Temperature range up to +150 °C
  • High Q factor
  • Qualified to AEC-Q200
  • Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
  • RoHS-compatible

Applications

  • Filtering of supply voltages, coupling, decoupling
  • Antenna systems
  • Automotive electronics
Technical specifications
Quality Q Q 30
DC current 55 mA
Width 3.2 mm
Height 3.2 mm
Length 4.5 mm
DC resistance 32 Ω
Measuring frequency 100 kHz
Version SMD choke
Design SMD 1812
Tolerance ±10 %
Inductance 1 mH
Logistics
Country of origin HU
Customs tariff number 85045000
Original Packaging Bulk with 2,500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
