B82432C1104K000 | TDK (EPCOS)

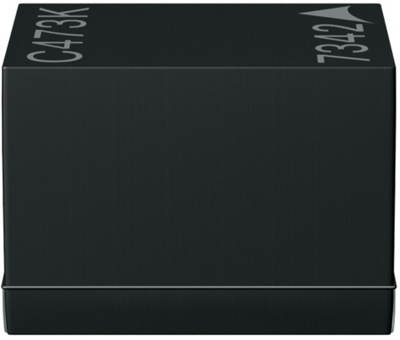

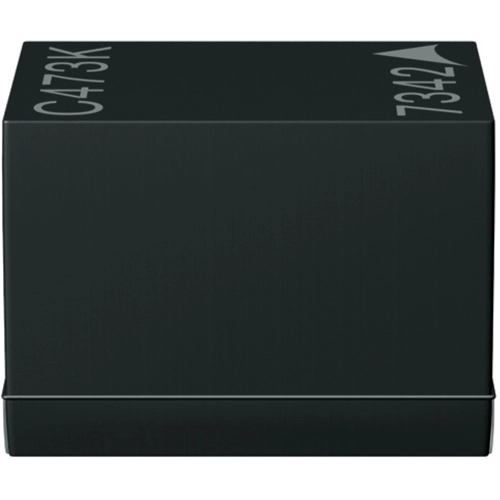

Choke, SMD 1812, 100 µH, 145 mA, B82432C1104K000
Unit Price (€ / pc.)
1.5232 € *
Available: 3,869 pcs.
Total Price:
1.52 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5232 €
10 pcs.
0.9520 €
50 pcs.
0.8449 €
250 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale
Choke, B82432C1104K000, EPCOS
Features
- High Q factor
- High resonance frequency
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- Antenna systems
- Automotive electronics
- Telecommunications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inductance | 100 µH | |
| DC current | 145 mA | |
| DC resistance | 4.7 Ω | |
| Design | SMD 1812 | |
| Version | SMD choke | |
| Quality Q | Q 30 | |
| Width | 3.2 mm | |
| Height | 3.2 mm | |
| Tolerance | ±10 % | |
| Measuring frequency | 100 kHz | |
| Length | 4.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Original Packaging | Bulk with 2,500 pieces |
| Customs tariff number | 85045000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
