B82432A1222K000 | TDK (EPCOS)
Choke, SMD 1812, 2.2 µH, 480 mA, B82432A1222K000
Order No.: 76D9218
EAN: 4099889045482
MPN:
B82432A1222K000
B82432A1222K
This item is no longer available.
As an alternative, we recommend the following item:
Choke, SMD 1812, 2.2 µH, 480 mA, B82432C1222K000
Order No.: 76D9602
Manufacturer: TDK (EPCOS)
per pc. 1.5232 € *
Choke, B82432A1222K000, EPCOS
Features
- High Q factor
- High resonance frequency
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- Antenna systems
- Automotive electronics
- Telecommunications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | SMD choke | |
| Inductance | 2.2 µH | |
| DC current | 480 mA | |
| Tolerance | ±10 % | |
| DC resistance | 430 mΩ | |
| Measuring frequency | 1 MHz | |
| Quality Q | Q 30 | |

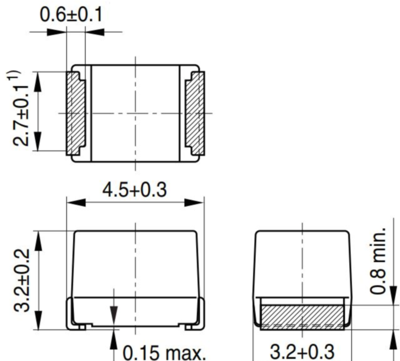

| Design | SMD 1812 | |
| Length | 4.5 mm | |
| Width | 3.2 mm | |
| Height | 3.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 5,000 pieces |
| Customs tariff number | 85045000 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
