B82432A1105K000 | TDK (EPCOS)

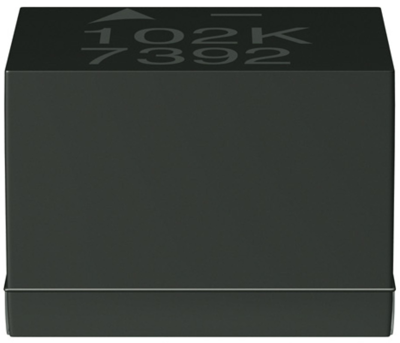

Choke, SMD 1812, 1 mH, 55 mA, B82432A1105K000
Order No.: 76D9282
EAN: 4099889045512
MPN:
B82432A1105K000
B82432A1105K
This item is no longer available.
As an alternative, we recommend the following item:
Choke, SMD 1812, 1 mH, 55 mA, B82432C1105K000
Order No.: 74D6855
Manufacturer: TDK (EPCOS)
per pc. 0.4879 € *
Choke, B82432A1105K000, EPCOS
Features
- High Q factor
- High resonance frequency
- Suitable for lead-free reflow soldering
- RoHS-compatible
Applications
- Filtering of supply voltages, coupling, decoupling
- Antenna systems
- Automotive electronics
- Telecommunications
Technical specifications
| Quality Q | Q 30 | |
| DC current | 55 mA | |

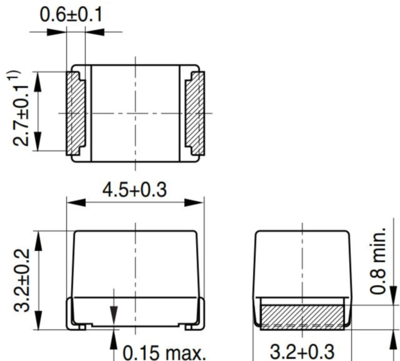

| Width | 3.2 mm | |
| Height | 3.2 mm | |
| Length | 4.5 mm | |
| DC resistance | 32 Ω | |
| Measuring frequency | 100 kHz | |
| Version | SMD choke | |
| Design | SMD 1812 | |
| Tolerance | ±10 % | |
| Inductance | 1 mH |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85045000 |
| MSL | MSL 1 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
